ADG5412FBRUZ

ADI

ANALOG DEVICES ADG5412FBRUZ Analog Switch, Quad Channel, SPST, 4Channels, 11.2Ω, 8V to 44V, ± 5V to ± 22V, TSSOP, 16Pins

Наличие: 1,170 шт.

Адрес доставки: Москва

Цена: ₽ 1,486.73

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC668095

Категория продукта:

Чип аналогового переключателя

3D модель

Оплата:

Обновлено 24.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

ADG5412FBRUZ характеристики

Атрибут	Значение атрибута
Номенклатура	ADG5412FBRUZ
Производитель	ADI
ЧипСити Номер продукта	CC668095
Категория продукта	Чип аналогового переключателя
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	16 Pin
Корпус/Пакет	TSSOP-16
Количество Выходных Интерфейсов	4 Output
Ток Питания	900 μA
Количество Цепей	4 Circuit
Количество Каналов	4 Channel
Количество Стежков	16 Position
Количество входов	4 Input
Рабочая температура (Макс)	125 ℃
Рабочая температура (мин)	-40 ℃
Полоса пропускания 3 дБ	270 MHz
Длина	5.1 mm
Ширина	4.5 mm
Высота	1.05 mm
Рабочая Температура	-40℃ ~ 125℃
Жизненный Цикл Продукта	Active
Упаковка	Tube
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

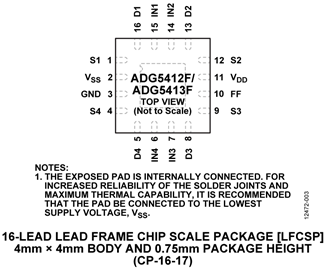

ADG5412FBRUZ описание продукта

Product Details
The ADG5412F and ADG5413F contain four independently controlled single-pole/single-throw (SPST) switches. The ADG5412F has four switches that turn on with Logic 1 inputs. The ADG5413F has two switches with that turn on and two switches that turn off with Logic 1 inputs. Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the supplies. The digital inputs are compatible with 3 V logic inputs over the full operating supply range.
When no power supplies are present, the switch remains in the off condition, and the switch inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed VDD or VSS by a threshold voltage, VT, then the switch turns off. Input signal levels up to +55 V or −55 V relative to ground are blocked, in both the powered and unpowered condition.
The low on resistance of these switches, combined with on-resistance flatness over a significant portion of the signal range make them an ideal solution for data acquisition and gain switching applications where excellent linearity and low distortion are critical.
**Product Highlights**
1. Source pins are protected against voltages greater than the supply rails, up to −55 V and +55 V.
2. Source pins are protected against voltages between −55 V and +55 V, in an unpowered state.
3. Overvoltage detection with digital output indicates operating state of switches.
4. Trench isolation guards against latch-up.
5. Optimized for low on resistance and on-resistance flatness.
6. The ADG5412F/ADG5413F can be operated from a dual supply of ±5 V up to ±22 V or a single power supply of 8 V up to 44 V.
**Applications**
Analog input/output modules
Process control/distributed control systems
Data acquisition
Instrumentation
Avionics
Automatic test equipment
Communication systems
Relay replacement
### Features and Benefits
Overvoltage protection up to −55 V and +55 V
Power-off protection up to −55 V and +55 V
Overvoltage detection on source pins
Low on resistance: 10 Ω
On-resistance flatness of 0.5 Ω
5.5 kV human body model (HBM) ESD rating
Latch-up immune under any circumstance
Known state without digitals present
VSS to VDD analog signal range
±5 V to ±22 V dual supply operation
8 V to 44 V single-supply operation
Fully specified at ±15 V, ±20 V, +12 V, and +36 V
ADG5412F-EP supports defense and aerospace applications (AQEC standard)
Download ADG5412F-EP Data Sheet (pdf)
Military temperature range (−55°C to +125°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request
V62/16608 DSCC Drawing Number
