AD9765AST

ADI

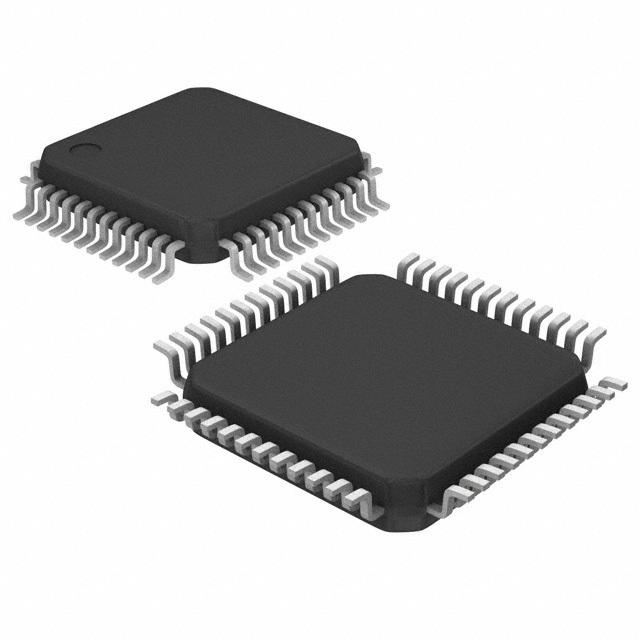

DAC 2CH Segment 12Bit 48Pin LQFP

Наличие: 9,482 шт.

Адрес доставки: Москва

Цена: ₽ 1,148.41

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC11393863

Категория продукта:

Преобразователь DA

3D модель

Оплата:

Обновлено 16.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

AD9765AST характеристики

Атрибут	Значение атрибута
Номенклатура	AD9765AST
Производитель	ADI
ЧипСити Номер продукта	CC11393863
Категория продукта	Преобразователь DA
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	48 Pin
Корпус/Пакет	LQFP-48
Количество Выходных Интерфейсов	2 Output
Количество Каналов	2 Channel
Количество Битов	12 Bit
Рассеяние Мощности	450 mW
Разрешение (биты)	12.0 Bit
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	450 mW
Напряжение питания (Макс)	5.5 V
Напряжение питания (мин)	3 V
Длина	9 mm
Ширина	7 mm
Высота	1.4 mm
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	Non-Compliant
Бессвинцовая Статус
Военный Класс	No
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

AD9765AST описание продукта

Product Details
The AD9763/AD9765/AD9767 are dual-port, high speed, 2-channel, 10-/12-/14-bit CMOS DACs. Each part integrates two high quality TxDAC+® cores, a voltage reference, and digital interface circuitry into a small 48-lead LQFP. The AD9763/ AD9765/AD9767 offer exceptional ac and dc performance while supporting update rates of up to 125 MSPS.
The AD9763/AD9765/AD9767 have been optimized for processing I and Q data in communications applications. The digital interface consists of two double-buffered latches as well as control logic. Separate write inputs allow data to be written to the two DAC ports independent of one another. Separate clocks control the update rate of the DACs.
A mode control pin allows the AD9763/AD9765/AD9767 to interface to two separate data ports, or to a single interleaved high speed data port. In interleaving mode, the input data stream is demuxed into its original I and Q data and then latched. The I and Q data is then converted by the two DACs and updated at half the input data rate.
The GAINCTRL pin allows two modes for setting the full-scale current (IOUTFS) of the two DACs. IOUTFS for each DAC can be set independently using two external resistors, or IOUTFS for both DACs can be set by using a single external resistor. See the Gain Control Mode section for important date code information on this feature.
The DACs utilize a segmented current source architecture combined with a proprietary switching technique to reduce glitch energy and maximize dynamic accuracy. Each DAC provides differential current output, thus supporting single-ended or differential applications. Both DACs of the AD9763, AD9765, or AD9767 can be simultaneously updated and can provide a nominal full-scale current of 20 mA. The full-scale currents between each DAC are matched to within 0.1%.
The AD9763/AD9765/AD9767 are manufactured on an advanced, low cost CMOS process. They operate from a single supply of 3.3 V to 5 V and consume 380 mW of power.
**Product Highlights**
1. The AD9763/AD9765/AD9767 are members of a pin- compatible family of dual TxDACs providing 8-, 10-, 12-, and 14-bit resolution.
2. Dual 10-/12-/14-Bit, 125 MSPS DACs. A pair of high performance DACs for each part is optimized for low distortion performance and provides flexible transmission of I and Q information.
3. Matching. Gain matching is typically 0.1% of full scale, and offset error is better than 0.02%.
4. Low Power. Complete CMOS dual DAC function operates on 380 mW from a 3.3 V to 5 V single supply. The DAC full-scale current can be reduced for lower power operation, and a sleep mode is provided for low power idle periods.
5. On-Chip Voltage Reference. The AD9763/AD9765/AD9767 each include a 1.20 V temperature-compensated band gap voltage reference.
6. Dual 10-/12-/14-Bit Inputs. The AD9763/AD9765/AD9767 each feature a flexible dual-port interface, allowing dual or interleaved input data.
**Applications**
* Communications
* Base stations
* Digital synthesis
* Quadrature modulation
* 3D ultrasound
### Features and Benefits
10-/12-/14-bit dual transmit digital-to-analog converters (DACs)
125 MSPS update rate
Excellent SFDR to Nyquist @ 5 MHz output: 75 dBc
Excellent gain and offset matching: 0.1%
Fully independent or single-resistor gain control
|
Dual-port or interleaved data
On-chip 1.2 V reference
5 V or 3.3 V operation
Power dissipation: 380 mW @ 5 V
Power-down mode: 50 mW @ 5 V
48-lead LQFP
---|---

Показывать

AD9765AST Даташит PDF

44 страницы, 637 КБ

08/23/2011
