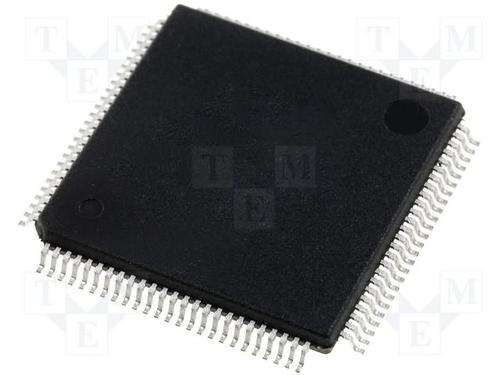

LPC2387FBD100

NXP

ARM7 with 512KB flash, 98KB SRAM, Ethernet, USB 2.0 Device, CAN, and 10Bit ADC

Наличие: 66 шт.

Адрес доставки: Москва

Цена: ₽ 1,807.67

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

NXP

ЧипСити Номер продукта:

CC18135673

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

LPC2387FBD100 характеристики

Атрибут	Значение атрибута
Номенклатура	LPC2387FBD100
Производитель	NXP
ЧипСити Номер продукта	CC18135673
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Корпус/Пакет	LQFP-100
Рабочее Напряжение	3VDC ~ 3.6VDC
Тактовая Частота	72 MHz
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Unknown
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
	Показывать Просмотр аналоги замена

LPC2387FBD100 описание продукта

Overview
The LPC2387 is an ARM7 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 72 MHz. Features include 512 kB of flash memory, 98 kB of SRAM, Ethernet MAC, USB Device/Host/OTG, DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 10-bit ADC, 10-bit DAC, 2 PWM, 4 general purpose timers, low power Real-Time Clock with separate battery supply, and up to 70 general purpose I/O pins. The LPC2387 is pin-compatible to the LPC176x Cortex-M3 MCU series.
MoreLess
## Features
* ARM7TDMI-S processor, running at up to 72 MHz
* 512 kB on-chip flash program memory
* 64 kB of SRAM on the ARM local bus for high performance CPU access
* 16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM
* 16 kB SRAM for general purpose DMA use also accessible by the USB
* Dual Advanced High-performance Bus (AHB) system
* Advanced Vectored Interrupt Controller (VIC)
* General Purpose DMA (GPDMA) on AHB controller
* Ethernet MAC with associated DMA controller
* USB 2.0 device/host/OTG with on-chip PHY and associated DMA controller
* Four UARTs with fractional baud rate generation
* CAN controller with two channels
* SPI controller
* Two SSP controllers, with FIFO and multi-protocol capabilities
* Three I2C-bus interfaces (one with open-drain and two with standard port pins)
* I2S (Inter-IC Sound) interface for digital audio input or output
* SD/MMC memory card interface
* 70 general purpose I/O pins with configurable pull-up/down resistors
* 10-bit ADC with input multiplexing among 6 pins
* 10-bit DAC
* Four general purpose timers/counters
* One PWM/timer block with support for three-phase motor control
* Real-Time Clock (RTC)
* 2 kB SRAM powered from the RTC power pin
* WatchDog Timer (WDT)
* Standard ARM test/debug interface for compatibility with existing tools
* Emulation trace module supports real-time trace
* Single 3.3 V power supply (3.0 V to 3.6 V)
* Four reduced power modes: idle, sleep, power-down, and deep power-down
* Four external interrupt inputs configurable as edge/level sensitive
* Processor wake-up from Power-down mode via any interrupt
* Two independent power domains allow fine tuning of power consumption
* Each peripheral has its own clock divider for further power saving
* Brownout detect with separate thresholds for interrupt and forced reset
* On-chip power-on reset
* On-chip crystal oscillator with an operating range of 1 MHz to 25 MHz
* 4 MHz internal RC oscillator trimmed to 1 % accuracy
* On-chip PLL
## Target Applications
* Industrial control
* Medical systems
* Protocol converter
* Communications
## Features

Показывать

LPC2387FBD100 Даташит PDF

66 страницы, 435 КБ

01/19/2011
