GTL2000DGG

NXP

IC SPECIALTY INTERFACE CIRCUIT, PDSO48, 6.1MM, PLASTIC, MO-153, SOT-362-1, TSSOP-48, Interface IC:Other

Наличие: 933 шт.

Адрес доставки: Москва

Цена: ₽ 0.00

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

NXP

ЧипСити Номер продукта:

CC91487469

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

GTL2000DGG характеристики

Атрибут	Значение атрибута
Номенклатура	GTL2000DGG
Производитель	NXP
ЧипСити Номер продукта	CC91487469
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount

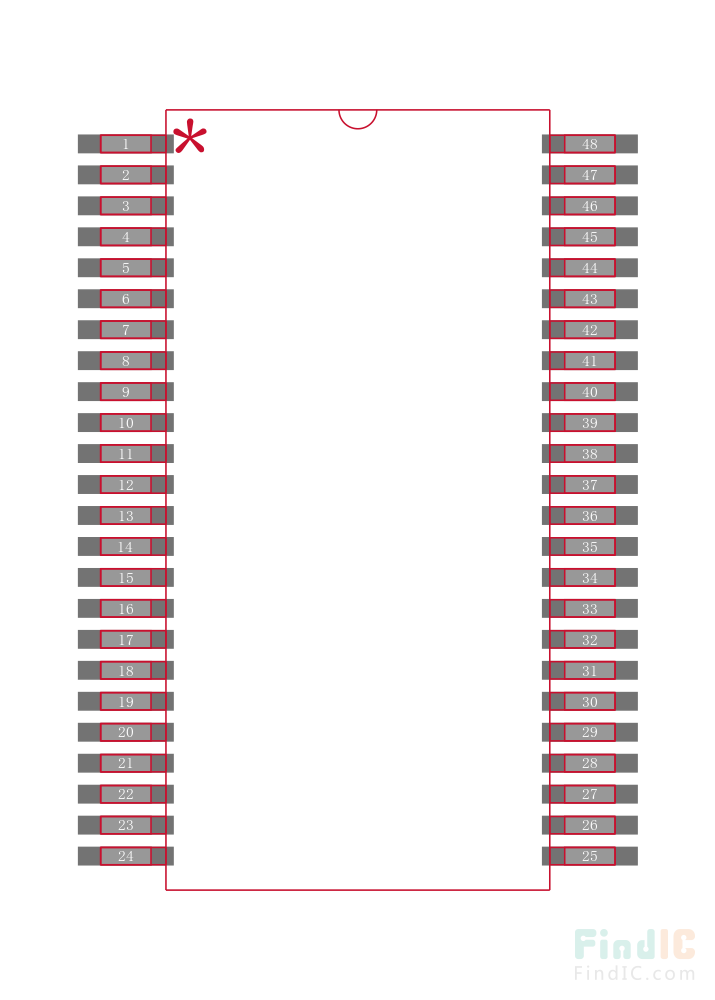

Корпус/Пакет	TSSOP-48
Жизненный Цикл Продукта	Unknown
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
	Показывать Просмотр аналоги замена

GTL2000DGG описание продукта

Overview
The Gunning Transceiver Logic - Transceiver Voltage Clamps (GTL-TVC) provide high-speed voltage translation with low ON-state resistance and minimal propagation delay. The GTL2000 provides 22 NMOS pass transistors (Sn and Dn) with a common gate (GREF) and a reference transistor (SREF and DREF). The device allows bi-directional voltage translations between 1.0 V and 5.0 V without use of a direction pin.
When the Sn or Dn port is low the clamp is in the ON-state and a low resistance connection exists between the Sn and Dn ports. Assuming the higher voltage is on the Dn port, when the Dn port is high, the voltage on the Sn port is limited to the voltage set by the reference transistor (SREF). When the Sn port is high, the Dn port is pulled to VCC by the pull up resistors. This functionality allows a seamless translation between higher and lower voltages selected by the user, without the need for directional control.
All transistors have the same electrical characteristics and there is minimal deviation from one output to another in voltage or propagation delay. This is a benefit over discrete transistor voltage translation solutions, since the fabrication of the transistors is symmetrical. Because all transistors in the device are identical, SREF and DREF can be located on any of the other twenty-two matched Sn/Dn transistors, allowing for easier board layout. The translator?s transistors provides excellent ESD protection to lower voltage devices and at the same time protect less ESD resistant devices.
MoreLess
## Features
* 22-bit bi-directional low voltage translator
* Allows voltage level translation between 1.0 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V busses which allows direct interface with GTL, GTL+, LVTTL/TTL and 5 V CMOS levels
* Provides bi-directional voltage translation with no direction pin
* Low 6.5 Ω RDSON resistance between input and output pins (Sn/Dn)
* Supports hot insertion
* No power supply required - Will not latch up
* 5 V tolerant inputs
* Low stand-by current
* Flow-through pinout for ease of printed circuit board trace routing
* ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115, and 1000 V per JESD22-C101
* Package offer: SSOP48, TSSOP48
## Target Applications
* Any application that requires bi-directional or unidirectional voltage level translation from any voltage between 1.0 V and 5.0 V to any voltage between 1.0 V and 5.0 V
* The open drain construction with no direction pin is ideal for bi-directional low voltage (e.g., 1.0 V, 1.2 V, 1.5 V, or 1.8 V) processor I²C port translation to the normal 3.3 V and/or 5.0 V I²C bus signal levels or GTL/GTL+ translation to LVTTL/TTL signal levels.
## Features

Показывать

GTL2000DGG Даташит PDF

13 страницы, 103 КБ

04/01/2003
