Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

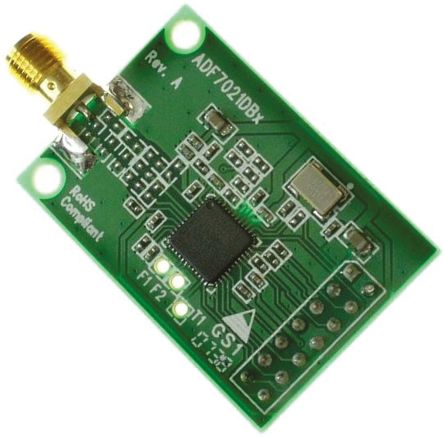

ADF7021BCPZ

ADI

RF Transceiver IC, 80MHz to 950MHz, 2FSK, 3FSK, 4FSK, MSK, 32.8Kbps, 2.3V to 3.6V, LFCSP-48

Наличие: 282 шт.

Адрес доставки: Москва

Цена: ₽ 528.40

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC173030

Категория продукта:

Радиочастотная деталь RF

3D модель

Оплата:

Обновлено 01.11.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

ADF7021BCPZ характеристики

Атрибут	Значение атрибута
Номенклатура	ADF7021BCPZ
Производитель	ADI
ЧипСити Номер продукта	CC173030
Категория продукта	Радиочастотная деталь RF
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	48 Pin
Корпус/Пакет	LFCSP-48
Частота	80MHz ~ 650MHz, 862MHz ~ 940MHz
Напряжение Питания (DC)	3.00 V
Количество Стежков	48 Position
Скорость Передачи Данных	32.8 kbps
Выходная Мощность	13 dBm
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Напряжение питания	2.3V ~ 3.6V
Напряжение питания (Макс)	3.6 V
Напряжение питания (мин)	2.3 V
Длина	7 mm
Ширина	7 mm
Высота	0.83 mm
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
REACH SVHC Комплаенс	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN кодекс	EAR99
Лицензия HK STC	NLR
	Показывать Просмотр аналоги замена

ADF7021BCPZ описание продукта

Product Details
The ADF7021 is a low power, highly integrated 2FSK/3FSK/4FSK transceiver. It is designed to operate in the narrow-band, license-free ISM bands and licensed bands in the 80 MHz to 650 MHz and 862 MHz to 940 MHz frequency ranges. It has both Gaussian and raised cosine data filtering options to improve spectral efficiency for narrow-band applications.
It is suitable for circuit applications targeted at European ETSI-EN 300-220, the Japanese ARIB STD-T67, the Chinese Short Range Device regulations, and the North American FCC Part 15, Part 90, and Part 95 regulatory standards. A complete transceiver can be built using a small number of external discrete components, making the ADF7021 very suitable for price-sensitive and area-sensitive applications.
The transmit section contains a voltage controlled oscillator (VCO) and a low noise fractional-N PLL with output resolution of <1 ppm. This frequency-agile PLL allows the ADF7021 to be used in frequency hopping spread spectrum (FHSS) systems. The VCO operates at twice the fundamental frequency to reduce spurious emissions and frequency pulling problems. The transmitter output power is programmable in 63 steps from −16 dBm to +13 dBm and has an automatic power ramp control to prevent spectral splatter and help meet regulatory standards. The transceiver RF frequency, channel spacing, and modulation are programmable using a simple 3-wire interface. The device operates with a power supply range of 2.3 V to 3.6 V and can be powered down when not in use.
A low IF architecture is used in the receiver (100 kHz), minimizing power consumption and the external component count while avoiding interference problems at low frequencies. The IF filter has programmable bandwidths of 12.5 kHz, 18.75 kHz, and 25 kHz. The ADF7021 supports a wide variety of programmable features including Rx linearity, sensitivity, and IF bandwidth, allowing the user to trade off receiver sensitivity and selectivity against current consumption, depending on the application. The receiver also features a patent-pending automatic frequency control (AFC) loop with programmable pull-in range, allowing the PLL to track out the frequency error in the incoming signal.
An on-chip ADC provides readback of an integrated tempera¬ture sensor, an external analog input, the battery voltage, and the RSSI signal, which provides savings on an ADC in some applications. The temperature sensor is accurate to ±10°C over the full operating temperature range of −40°C to +85°C. This accuracy can be improved by doing a 1-point calibration at room temperature and storing the result in memory.
### Features and Benefits
Low power, high performance, narrowband transciever
Frequency Bands: 80-650MHz and 862-940MHz
Modulation schemes: 2FSK, 3FSK, 4FSK
Spectral shaping: Gaussian and Raised Cosine Filtering
Automatic PA ramp
Data rates supported: 0.05kps to 25kbps
Programmable output power: -16dBm to +13dBm
Low IF architecture with programmable IF bandwidths of 12.5/18.5/25kHz
2.3V to 3.6V Power Supply
Receiver sensitivity: -123dBm @ 1kbps FSK
Fully automatic frequency control loop (AFC)compensates for lower tolerance crystals
High Accuracy digital RSSI and integrated Tx/Rx switch
