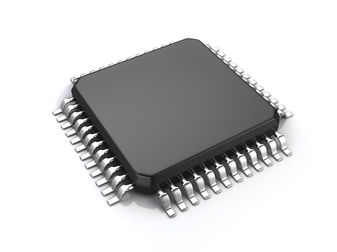

Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

AD9709ASTZ

ADI

ANALOG DEVICES AD9709ASTZ Digital to Analog Converter, 8Bit, 125MSPS, Parallel, 3V to 5.5V, LQFP, 48Pins

Наличие: 6,199 шт.

Адрес доставки: Москва

Цена: ₽ 736.87

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC375135

Категория продукта:

Преобразователь DA

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

AD9709ASTZ характеристики

Атрибут	Значение атрибута
Номенклатура	AD9709ASTZ
Производитель	ADI
ЧипСити Номер продукта	CC375135
Категория продукта	Преобразователь DA
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	48 Pin
Корпус/Пакет	LQFP-48
Количество Выходных Интерфейсов	2 Output
Ток Питания	71.0 mA
Количество Каналов	2 Channel
Количество Стежков	48 Position
Количество Битов	8 Bit
Рассеяние Мощности	450 mW
Частота Выборки	125 Msps
Разрешение (биты)	8.0 Bit
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	450 mW
Количество ЦАПов	2 DAC
Напряжение питания	3V ~ 5.5V
Длина	7 mm
Ширина	7 mm
Высота	1.4 mm
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
REACH SVHC Комплаенс	No SVHC
Военный Класс	No
REACH SVHC Compliance Edition	2015/12/17
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

AD9709ASTZ описание продукта

Product Details
The AD9709 is a dual-port, high speed, 2-channel, 8-bit CMOS DAC. It integrates two high quality 8-bit TxDAC+® cores, a voltage reference, and digital interface circuitry into a small 48-lead LQFP package. The AD9709 offers exceptional ac and dc performance while supporting update rates of up to 125 MSPS.
The AD9709 has been optimized for processing I and Q data in communications applications. The digital interface consists of two double-buffered latches as well as control logic. Separate write inputs allow data to be written to the two DAC ports independent of one another. Separate clocks control the update rate of the DACs
A mode control pin allows the AD9709 to interface to two separate data ports, or to a single interleaved high speed data port. In interleaving mode, the input data stream is demuxed into its original I and Q data and then latched. The I and Q data is then converted by the two DACs and updated at half the input data rate.
The GAINCTRL pin allows two modes for setting the full-scale current (IOUTFS) of the two DACs. IOUTFS for each DAC can be set independently using two external resistors, or IOUTFS for both DACs can be set by using a single external resistor. See the Gain Control Mode section for important date code information on this feature.
The DACs utilize a segmented current source architecture combined with a proprietary switching technique to reduce glitch energy and to maximize dynamic accuracy. Each DAC provides differential current output, thus supporting single-ended or differential applications. Both DACs can be simultaneously updated and provide a nominal full-scale current of 20 mA. The full-scale currents between each DAC are matched to within 0.1%.
The AD9709 is manufactured on an advanced low-cost CMOS process. It operates from a single supply of 3.3 V or 5 V and consumes 380 mW of power.
**Product Highlights**
1. The AD9709 is a member of a pin-compatible family of dual TxDACs providing 8-, 10-, 12-, and 14-bit resolution.
2. Dual 8-Bit, 125 MSPS DACs. A pair of high performance DACs optimized for low distortion performance provide for flexible transmission of I and Q information.
3. Matching. Gain matching is typically 0.1% of full scale, and offset error is better than 0.02%.
4. Low Power. Complete CMOS dual DAC function operates at 380 mW from a 3.3 V or 5 V single supply. The DAC full-scale current can be reduced for lower power operation, and a sleep mode is provided for low power idle periods.
5. On-Chip Voltage Reference. The AD9709 includes a 1.20 V temperature-compensated band gap voltage reference.
6. Dual 8-Bit Inputs. The AD9709 features a flexible dual-port interface, allowing dual or interleaved input data.
**Applications**
* Communications
* Base stations
* Digital synthesis
* Quadrature modulation
* 3D ultrasound
### Features and Benefits
8-bit dual transmit digital-to-analog converter (DAC)
125 MSPS update rate
Excellent SFDR to Nyquist @ 5 MHz output: 66 dBc
Excellent gain and offset matching: 0.1%
Fully independent or single-resistor gain control
Dual port or interleaved data
On-chip 1.2 V reference
See Data Sheet for Additional Information

Показывать

AD9709ASTZ Даташит PDF

32 страницы, 592 КБ

09/09/2009
