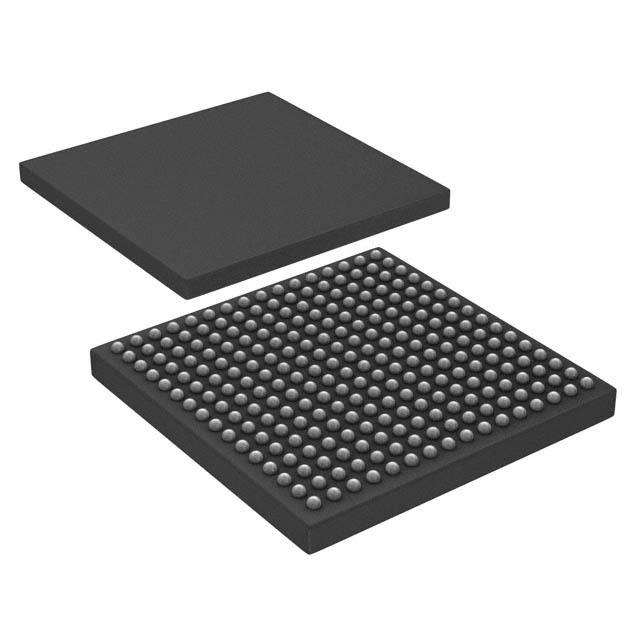

LPC4370FET256E

NXP

32Bit ARM Cortex-M4 + 2 x M0 MCU; 282KB SRAM; Ethernet; two HS USBs; 80MSPS 12Bit ADC; configurable peripherals

Наличие: 886 шт.

Адрес доставки: Москва

Цена: ₽ 1,077.61

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

NXP

ЧипСити Номер продукта:

CC48537600

Категория продукта:

Микроконтроллер

3D модель

Оплата:

Обновлено 10.07.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

LPC4370FET256E характеристики

Атрибут	Значение атрибута
Номенклатура	LPC4370FET256E
Производитель	NXP
ЧипСити Номер продукта	CC48537600
Категория продукта	Микроконтроллер
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	256 Pin
Корпус/Пакет	LBGA-256
Частота	204 MHz
Количество Стежков	256 Position
Размер ОЗУ	282 KB
Количество Битов	32 Bit
Размер Флэш-памяти	0 kB
Количество АЦП	2 ADC
Количество входов и выходов	164 Input IO
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	1500 mW
Количество ЦАПов	1 DAC
Напряжение питания	2.2V ~ 3.6V
Напряжение питания (Макс)	3.6 V
Напряжение питания (мин)	2.2 V
Вес	740.5550414100001 mg
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
	Показывать Просмотр аналоги замена

LPC4370FET256E описание продукта

Overview
The LPC4370 are ARM Cortex-M4 based microcontrollers for embedded applications which include an ARM Cortex-M0 coprocessor and an ARM Cortex-M0 subsystem for managing peripherals, 282 kB of SRAM, advanced configurable peripherals such as the State Configurable Timer (SCT) and the Serial General Purpose I/O (SGPIO) interface, two High-speed USB controllers, Ethernet, LCD, an external memory controller, and multiple digital and analog peripherals including a high-speed 12-bit ADC. The LPC4370 operate at CPU frequencies of up to 204 MHz.
The ARM Cortex-M4 is a next generation 32-bit core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching. The ARM Cortex-M4 supports single-cycle digital signal processing and SIMD instructions. A hardware floating-point processor is integrated in the core.
The LPC4370 include an application ARM Cortex-M0 coprocessor and a second ARM Cortex-M0 subsystem for managing the SGPIO and SPI peripherals. The ARM Cortex-M0 core is an energy-efficient and easy-to-use 32-bit core which is code- and tool-compatible with the Cortex-M4 core. Both Cortex-M0 cores offer up to 204 MHz performance with a simple instruction set and reduced code size.
MoreLess
## Features
* Main Cortex-M4 processor:
* ARM Cortex-M4 processor, running at frequencies of up to 204 MHz
* ARM Cortex-M4 built-in Memory Protection Unit (MPU) supporting eight regions
* ARM Cortex-M4 built-in Nested Vectored Interrupt Controller (NVIC)
* Hardware floating-point unit
* Non-maskable Interrupt (NMI) input
* JTAG and Serial Wire Debug (SWD), serial trace, eight breakpoints, and four watch points
* Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support
* System tick timer
* Cortex-M0 coprocessor:
* ARM Cortex-M0 coprocessor capable of off-loading the main ARM Cortex-M4 processor
* Running at frequencies of up to 204 MHz
* JTAG and built-in NVIC
* Cortex-M0 subsystem:
* ARM Cortex-M0 processor controlling the SPI and SGPIO peripherals residing on a separate AHB multilayer matrix with direct access to 2 kB + 16 kB of SRAM
* Running at frequencies of up to 204 MHz
* Connected via a core-to-core bridge to the main AHB multilayer matrix and the main ARM Cortex-M4 processor
* On-chip memory:
* 264 kB SRAM for code and data use on the main AHB multilayer matrix plus 18 kB of SRAM on the Cortex-M0 subsystem
* Multiple SRAM blocks with separate bus access. Two SRAM blocks can be powered down individually
* 64 kB ROM containing boot code and on-chip software drivers
* 64-bit + 256 bit general-purpose One-Time Programmable (OTP) memory
* Configurable digital peripherals:
* Serial GPIO (SGPIO) interface
* State Configurable Timer (SCT) subsystem on AHB
* Global Input Multiplexer Array (GIMA) allows to cross-connect multiple inputs and outputs to event driven peripherals like the timers, SCT, and ADC0/1
* Serial interfaces:
* Quad SPI Flash Interface (SPIFI) with four lanes and up to 52 MB per second
* 10/100T Ethernet MAC with RMII and MII interfaces and DMA support for high throughput at low CPU load. Support for IEEE 1588 time stamping/advanced time stamping (IEEE 1588-2008 v2)
* One High-speed USB 2.0 Host/Device/OTG interface with DMA support and on-chip high-speed PHY
* One High-speed USB 2.0 Host/Device interface with DMA support, on-chip full-speed PHY and ULPI interface to external high-speed PHY
* USB interface electrical test software included in ROM USB stack
* One 550 UART with DMA support and full modem interface
* Three 550 USARTs with DMA and synchronous mode support and a smart card interface conforming to ISO7816 specification. One USART with IrDA interface
* Two C_CAN 2.0B controllers with one channel each. Use of C_CAN controller excludes operation of all other peripherals connected to the same bus bridge
* Two SSP controllers with FIFO and multi-protocol support. Both SSPs with DMA support
* One SPI controller
* One Fast-mode Plus I²C-bus interface with monitor mode and open-drain I/O pins conforming to the full I²C-bus specification. Supports data rates of up to 1 Mbit/s
* One standard I²C-bus interface with monitor mode and with standard I/O pins
* Two I²S interfaces, each with DMA support and with one input and one output
* Digital peripherals:
* External Memory Controller (EMC) supporting external SRAM, ROM, NOR flash, and SDRAM devices
* LCD controller with DMA support and a programmable display resolution of up to 1024 H x 768 V. Supports monochrome and color STN panels and TFT color panels; supports 1/2/4/8 bpp Color Look-Up Table (CLUT) and 16/24-bit direct pixel mapping
* Secure Digital Input Output (SD/MMC) card interface
* Eight-channel General-Purpose DMA (GPDMA) controller can access all memories on the AHB and all DMA-capable AHB slaves
* 164 General-Purpose Input/Output (GPIO) pins with configurable pull-up/pull-down resistors and open-drain mode
* GPIO registers are located on the AHB for fast access. GPIO ports have DMA support
* Up to eight GPIO pins can be selected from all GPIO pins as edge and level sensitive interrupt sources
* Two GPIO group interrupt modules enable an interrupt based on a programmable pattern of input states of a group of GPIO pins
* Four general-purpose timer/counters with capture and match capabilities
* One motor control Pulse Width Modulator (PWM) for three-phase motor control
* One Quadrature Encoder Interface (QEI)
* Repetitive Interrupt timer (RI timer)
* Windowed watchdog timer (WWDT)
* Ultra-low power Real-Time Clock (RTC) on separate power domain with 256 bytes of battery powered backup registers
* Alarm timer; can be battery powered
* Analog peripherals:
* One 10-bit DAC with DMA support and a data conversion rate of 400 kSamples/s. LBGA256 package only
* Two 8-channel, 10-bit ADCs (ADC0/1) with DMA support and a data conversion rate of 400 kSamples/s for a total of 16 independent channels. The 10-bit ADCs are only available on the LBGA256 package
* One 6-channel, 12-bit high-speed ADC (ADCHS) with DMA support and a data conversion rate of 80 MSamples/s
* Unique ID for each device
* Clock generation unit:
* Crystal oscillator with an operating range of 1 MHz to 25 MHz
* 12 MHz Internal RC (IRC) oscillator trimmed to 1 % accuracy over temperature and voltage
* Ultra-low power Real-Time Clock (RTC) crystal oscillator
* Three PLLs allow CPU operation up to the maximum CPU rate without the need for a high-frequency crystal. The second PLL is dedicated to the High-speed USB, the third PLL can be used as audio PLL
* Clock output
* Power:
* Single 3.3 V (2.2 V to 3.6 V) power supply with on-chip DC-to-DC converter for the core supply and the RTC power domain
* RTC power domain can be powered separately by a 3 V battery supply
* Four reduced power modes: Sleep, Deep-sleep, Power-down, and Deep power-down
* Processor wake-up from Sleep mode via wake-up interrupts from various peripherals
* Wake-up from Deep-sleep, Power-down, and Deep power-down modes via external interrupts and interrupts generated by battery powered blocks in the RTC power domain
* Brownout detect with four separate thresholds for interrupt and forced reset
* Available as LBGA256 and TFBGA100 packages
## Target Applications
* Motor control
* Power management
* White goods
* RFID readers
* Embedded audio applications
* Industrial automation
* e-metering
## Features
