LPC43S50FET180E Купить - NXP Микроконтроллер 32

Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

LPC43S50FET180E

NXP

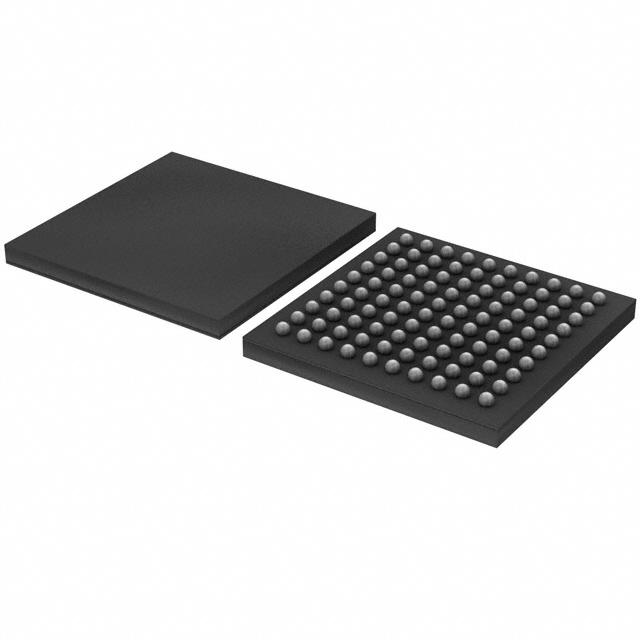

NXP LPC43S50FET180E 32Bit Microcontroller, ARM Cortex-M0, ARM Cortex-M4, 204MHz, 264KB, 180Pins, BGA

Наличие: 207 шт. Гарантия оригинала

Адрес доставки:

Цена: ₽ 879.11

шт.

Купить

Цена действительна 24 часа

Высокий спрос на этой неделе

Производитель:

NXP

ЧипСити Номер продукта:

CC67538189

Категория продукта:

Микроконтроллер 32

Дата доставки: 7 дней

3D модель

Оплата:

Обновлено 01.05.2026, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

Более 11 лет опыта в закупках

Сертифицированный поставщик (ISO)

1000+ клиентов в России

Поддержка малого MOQ

LPC43S50FET180E характеристики

Атрибут	Значение атрибута
Номенклатура	LPC43S50FET180E
Производитель	NXP
ЧипСити Номер продукта	CC67538189
Жизненный Цикл Продукта	Active
Категория продукта	Микроконтроллер 32
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	180 Pin
Корпус/Пакет	BGA-180
Частота	204 MHz
Напряжение Питания (DC)	2.20V (min)
Количество Стежков	180 Position
Тактовая Частота	204 MHz
Размер ОЗУ	264 KB
Количество Битов	32 Bit
Количество АЦП	2 ADC
Количество входов и выходов	118 Input IO
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	1500 mW
Количество ЦАПов	1 DAC
Напряжение питания (Макс)	3.6 V
Напряжение питания (мин)	2.2 V
Рабочая Температура	-40℃ ~ 85℃ (TA)
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
REACH SVHC Compliance Edition	2015/12/17
	Показывать Просмотр аналоги замена

Аналоги товара

LPC43S50FET180E описание продукта

Overview
The LPC43S50FET180 is a ARM Cortex-M4 based microcontroller for embedded applications which includes an ARM Cortex-M0 coprocessor, 264 kB of SRAM, security features with AES engine, advanced configurable peripherals such as the State Configurable Timer/PWM (SCTimer/PWM) and the Serial General-Purpose I/O (SGPIO) interface, two High-speed USB controllers, Ethernet, LCD, an external memory controller, and multiple digital and analog peripherals. The LPC43S50FET180 operates at CPU frequencies of up to 204 MHz.
The ARM Cortex-M4 is a 32-bit core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching. The ARM Cortex-M4 supports single-cycle digital signal processing and SIMD instructions. A hardware floating-point unit is integrated in the core.
The ARM Cortex-M0 coprocessor is an energy-efficient and easy-to-use 32-bit core which is code- and tool-compatible with the Cortex-M4 core. The Cortex-M0 coprocessor offers up to 204 MHz performance with a simple instruction set and reduced code size. In LPC43Sx0, the Cortex-M0 coprocessor hardware multiply is implemented as a 32-cycle iterative multiplier.
MoreLess
## Features
* Cortex-M4 Processor core
* ARM Cortex-M4 processor, running at frequencies of up to 204 MHz.
* Built-in Memory Protection Unit (MPU) supporting eight regions.
* Built-in Nested Vectored Interrupt Controller (NVIC).
* Hardware floating-point unit making the core a Cortex-M4.
* Non-maskable Interrupt (NMI) input.
* JTAG and Serial Wire Debug (SWD), serial trace, eight breakpoints, and four watch points.
* Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support.
* System tick timer.
* Cortex-M0 Processor core
* ARM Cortex-M0 coprocessor capable of off-loading the main ARM Cortex-M4F application processor.
* Running at frequencies of up to 204 MHz.
* JTAG
* Built-in NVIC.
* On-chip memory
* 264 kB SRAM for code and data use.
* Multiple SRAM blocks with separate bus access. Two SRAM blocks can be powered down individually
* 64 kB ROM containing boot code and on-chip software drivers.
* 64 bit general-purpose OTP memory
* Two banks (256 bit total) One-Time Programmable (OTP) memory for AES key storage One bank can store an encrypted key for decoding the boot image.
* AES engine for encryption and decryption of the boot image and data with DMA support and programmable via a ROM-based API.
* Clock generation unit
* Crystal oscillator with an operating range of 1 MHz to 25 MHz.
* 12 MHz Internal RC (IRC) oscillator trimmed to 1.5 % accuracy over temperature and voltage.
* Ultra-low power Real-Time Clock (RTC) crystal oscillator.
* Three PLLs allow CPU operation up to the maximum CPU rate without the need for a high-frequency crystal. The second PLL is dedicated to the High-speed USB, the third PLL can be used as audio PLL.
* Clock output.
* Configurable digital peripherals
* Serial GPIO (SGPIO) interface.
* State Configurable Timer (SCTimer/PWM) subsystem on AHB.
* Global Input Multiplexer Array (GIMA) allows to cross-connect multiple inputs and outputs to event driven peripherals like the timers, SCTimer/PWM, and ADC0/1.
* Serial interfaces
* Quad SPI Flash Interface (SPIFI) with 1-, 2-, or 4-bit data at rates of up to 52 MB per second.
* 10/100T Ethernet MAC with RMII and MII interfaces and DMA support for high throughput at low CPU load. Support for IEEE 1588 time stamping/advanced time stamping (IEEE 1588-2008 v2).
* One High-speed USB 2.0 Host/Device/OTG interface with DMA support and on-chip high-speed PHY (USB0).
* One High-speed USB 2.0 Host/Device interface with DMA support, on-chip full-speed PHY and ULPI interface to external high-speed PHY (USB1).
* USB interface electrical test software included in ROM USB stack.
* Four 550 UARTs with DMA support: one UART with full modem interface; one UART with IrDA interface; three USARTs support UART synchronous mode and a smart card interface conforming to ISO7816 specification.
* Up to two C_CAN 2.0B controllers with one channel each. Use of C_CAN controller excludes operation of all other peripherals connected to the same bus bridge
* Two SSP controllers with FIFO and multi-protocol support. Both SSPs with DMA support.
* One SPI controller.
* One Fast-mode Plus I²C-bus interface with monitor mode and with open-drain I/O pins conforming to the full I²C-bus specification. Supports data rates of up to 1 Mbit/s.
* One standard I²C-bus interface with monitor mode and with standard I/O pins.
* Two I²S interfaces, each with DMA support and with one input and one output.
* Digital peripherals
* External Memory Controller (EMC) supporting external SRAM, ROM, NOR flash, and SDRAM devices.
* LCD controller with DMA support and a programmable display resolution of up to 1024 H x 768 V. Supports monochrome and color STN panels and TFT color panels; supports 1/2/4/8 bpp Color Look-Up Table (CLUT) and 16/24-bit direct pixel mapping.
* Secure Digital Input Output (SD/MMC) card interface.
* Eight-channel General-Purpose DMA controller can access all memories on the AHB and all DMA-capable AHB slaves.
* Up to 118 General-Purpose Input/Output (GPIO) pins with configurable pull-up/pull-down resistors.
* GPIO registers are located on the AHB for fast access. GPIO ports have DMA support.
* Up to eight GPIO pins can be selected from all GPIO pins as edge and level sensitive interrupt sources.
* Two GPIO group interrupt modules enable an interrupt based on a programmable pattern of input states of a group of GPIO pins.
* Four general-purpose timer/counters with capture and match capabilities.
* One motor control Pulse Width Modulator (PWM) for three-phase motor control.
* One Quadrature Encoder Interface (QEI).
* Repetitive Interrupt timer (RI timer).
* Windowed watchdog timer (WWDT).
* Ultra-low power Real-Time Clock (RTC) on separate power domain with 256 bytes of battery powered backup registers.
* Alarm timer; can be battery powered.
* Analog peripherals
* One 10-bit DAC with DMA support and a data conversion rate of 400 kSamples/s.
* Two 10-bit ADCs with DMA support and a data conversion rate of 400 kSamples/s. Up to eight input channels per ADC.
* Unique ID for each device.
* Power
* Single 3.3 V (2.2 V to 3.6 V) power supply with on-chip internal voltage regulator for the core supply and the RTC power domain.
* RTC power domain can be powered separately by a 3 V battery supply.
* Four reduced power modes: Sleep, Deep-sleep, Power-down, and Deep power-down.
* Processor wake-up from Sleep mode via wake-up interrupts from various peripherals.
* Wake-up from Deep-sleep, Power-down, and Deep power-down modes via external interrupts and interrupts generated by battery powered blocks in the RTC power domain.
* Brownout detect with four separate thresholds for interrupt and forced reset.
* Power-On Reset (POR).
* Available as TFBGA180 package.
## Target Applications
* Communication hubs
* Automotive aftermarket
* Power management
* Consumer health devices
* Embedded audio applications
* Industrial control
* Industrial automation
* White goods
## Features

Показывать

LPC43S50FET180E Даташит PDF

33 страницы, 332 КБ

02/03/2010
