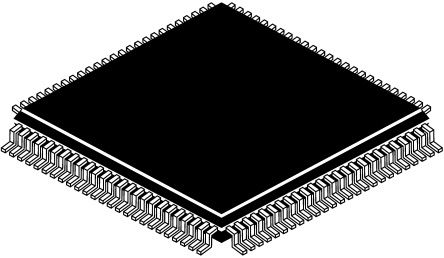

Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

ADV7612BSWZ

ADI

HDMI Receiver 2RX 100Pin LQFP EP Tray

Наличие: 36 шт.

Адрес доставки: Москва

Цена: ₽ 906.97

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC15485666

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

ADV7612BSWZ характеристики

Атрибут	Значение атрибута
Номенклатура	ADV7612BSWZ
Производитель	ADI
ЧипСити Номер продукта	CC15485666
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	100 Pin
Корпус/Пакет	LQFP-100
Напряжение Питания (DC)	1.71V (min)
Ток Питания	149.5 mA
Количество Каналов	2 Channel
Разрешение (биты)	12.0 Bit
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Напряжение питания (Макс)	1.89 V
Напряжение питания (мин)	1.71 V
Длина	14.2 mm
Ширина	14.2 mm
Высота	1.45 mm
Жизненный Цикл Продукта	Unknown
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Contains Lead
REACH SVHC Комплаенс	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

ADV7612BSWZ описание продукта

Product Details
The ADV7612 is offered in automotive, professional (no HDCP), and industrial versions. The operating temperature range is −40°C to +85°C.
The UG-216 contains critical information that must be used in conjunction with the ADV7612.
The ADV7612 is a high quality Xpressview™ fast switching HDMI®-capable receiver. It incorporates a dual input HDMI- capable receiver that supports all mandatory 3D TV formats defined in HDMI 1.4a specification, HDTV formats up to 1080p 36-bit Deep Color, and display resolutions up to UXGA (1600 × 1200 at 60 Hz).
It integrates a CEC controller that supports the capability discovery and control (CDC) feature.
The ADV7612 incorporates Xpressview fast switching on both input HDMI ports. Using Analog Devices, Inc., hardware-based HDCP engine that minimizes software overhead, Xpressview technology allows fast switching between both HDMI input ports in less than 1 second.
Each HDMI port has dedicated 5 V detect and Hot Plug™ assert pins. The HDMI receiver also includes an integrated program- mable equalizer that ensures robust operation of the interface with long cables.
The ADV7612 offers a flexible audio output port for audio data extraction from the HDMI stream. HDMI audio formats, including SACD via DSD and HBR, are supported by ADV7612. The HDMI receiver has advanced audio functionality, such as a mute controller that prevents audible extraneous noise in the audio output.
The ADV7612 contains one main component processor (CP) that processes the video signals from the HDMI receiver. It provides features such as contrast, brightness and saturation adjustments, STDI detection block, free run, and synchronization alignment controls.
Fabricated in an advanced CMOS process, the ADV7612 is provided in a 14 mm × 14 mm, 100-lead surface-mount LQFP_EP, RoHS-compliant package, and is specified over the −40°C to +85°C temperature range.
**Applications**
Projectors
Automotive
Video conferencing
HDTVs
AVR, HTiB
Soundbars
Video switches
### Features and Benefits
High-Definition Multimedia Interface (HDMI) 1.4a features supported
All mandatory and additional 3D video formats supported
Extended colorimetry, including sYCC601, Adobe RGB, Adobe YCC 601, xvYCC extended gamut color
HDMI receiver
225 MHz maximum TMDS clock frequency
Xpressview fast switching of HDMI ports
Audio support including high bit rate (HBR) and direct stream digital (DSD)
S/PDIF (IEC 60958-compatible) digital audio support
Supports up to four I2S outputs
Interrupt controller with two interrupt outputs
Standard Identification (STDI) circuit
High-bandwidth Digital Content Protection (HDCP) - 1.4 support with internal HDCP keys
HDCP repeater support - Up to 127 KSVs supported
See data sheet for additional features

Показывать

ADV7612BSWZ Даташит PDF

20 страницы, 302 КБ

01/21/2014
