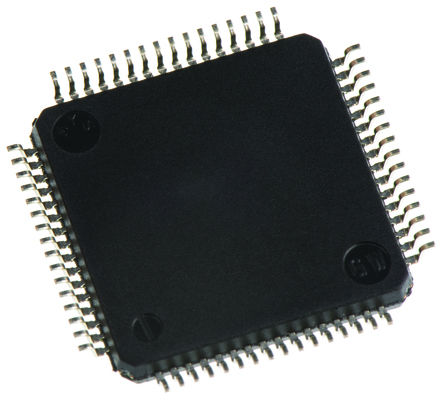

STM8L152R8T6

ST Microelectronics

MCU 8Bit STM8 CISC 64KB Flash 1.8V/2.5V/3.3V 64Pin LQFP Tray

Наличие: 9,689 шт.

Адрес доставки: Москва

Цена: ₽ 136.40

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ST Microelectronics

ЧипСити Номер продукта:

CC1161085

Категория продукта:

Микроконтроллер

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

STM8L152R8T6 характеристики

Атрибут	Значение атрибута
Номенклатура	STM8L152R8T6
Производитель	ST Microelectronics
ЧипСити Номер продукта	CC1161085
Категория продукта	Микроконтроллер
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	64 Pin
Корпус/Пакет	LQFP-64
Частота	16 MHz
Количество Стежков	64 Position
Размер ОЗУ	4K x 8
Рассеяние Мощности	288 mW
Количество АЦП	1 ADC
Количество входов и выходов	54 Input IO
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	288 mW
Количество ЦАПов	2 DAC
Напряжение питания	1.8V ~ 3.6V
Напряжение питания (Макс)	3.6 V
Напряжение питания (мин)	1.8 V
Длина	10 mm
Ширина	10 mm
Высота	1.45 mm
Рабочая Температура	-40℃ ~ 85℃ (TA)
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
ECCN кодекс	ECL99
	Показывать Просмотр аналоги замена

STM8L152R8T6 описание продукта

The high-density and medium+ density STM8L15xx6/8 ultra-low-power devices feature an enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low-power operations.
The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive in-application debugging and ultrafast Flash programming.
All high-density and medium+ density STM8L15xx6/8 microcontrollers feature embedded data EEPROM and low-power low-voltage single-supply program Flash memory.
The devices incorporate an extensive range of enhanced I/Os and peripherals, a 12-bit ADC, two DACs, two comparators, a real-time clock, four 16-bit timers, one 8-bit timer, as well as standard communication interfaces such as two SPIs, an I2C interface, and three USARTs. A 8x40 or 4x44-segment LCD is available on the STM8L152x8 devices. The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.
**Key Features**
Operating conditions
Operating power supply: 1.65 to 3.6 V (without BOR), 1.8 to 3.6 V (with BOR)
Temp. range: -40 to 85, 105 or 125 °C
Low-power features
5 low-power modes: Wait, Low-power run (5.9 µA), Low-power wait (3 µA), Active-halt with full RTC (1.4 µA), Halt (400 nA)
Consumption: 200 µA/MHz+330 µA
Fast wake up from Halt mode (4.7 µs)
Ultra low leakage per I/0: 50 nA
Advanced STM8 core
Harvard architecture and 3-stage pipeline
Max freq: 16 MHz, 16 CISC MIPS peak
Up to 40 external interrupt sources
Reset and supply management
Low-power, ultra safe BOR reset with five programmable thresholds
Ultra-low-power POR/PDR
Programmable voltage detector (PVD)
Clock management
32 kHz and 1-16 MHz crystal oscillators
Internal 16 MHz factory-trimmed RC and 38 kHz low consumption RC
Clock security system
Low-power RTC
BCD calendar with alarm interrupt,
Digital calibration with +/- 0.5ppm accuracy
Advanced anti-tamper detection
LCD: 8x40 or 4x44 w/ step-up converter
DMA
4 ch. for ADC, DACs, SPIs, I2 C, USARTs, Timers, 1 ch. for memory-to-memory
2x12-bit DAC (dual mode) with output buffer
12-bit ADC up to 1 Msps/28 channels
Temp. sensor and internal ref. voltage
Memories
Up to 64 KB of Flash memory with up to 2KB of data EEPROM with ECC and RWW
Flexible write/read protection modes
Up to 4 KB of RAM
2 ultra-low-power comparators
1 with fixed threshold and 1 rail to rail
Wake up capability
Timers
Three 16-bit timers with 2 channels (IC, OC, PWM), quadrature encoder
One 16-bit advanced control timer with 3 channels, supporting motor control
One 8-bit timer with 7-bit prescaler
One window, one independent watchdog
Beeper timer with 1, 2 or 4 kHz frequencies
Communication interfaces
Two synchronous serial interface (SPI)
Fast I2 C 400 kHz SMBus and PMBus
Three USARTs (ISO 7816 interface + IrDA)
Up to 67 I/Os, all mappable on interrupt vectors
Up to 16 capacitive sensing channels supporting touchkey, proximity, linear touch and rotary touch sensors
Fast on-chip programming and non-intrusive debugging with SWIM, Bootloader using USART
96-bit unique ID

Показывать

STM8L152R8T6 Даташит PDF

134 страницы, 1845 КБ

07/31/2013
