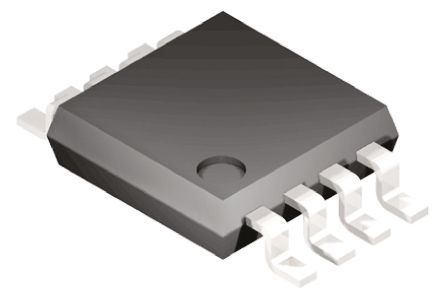

ANALOG DEVICES ADM1485ARMZ Transceiver, RS422 / RS485, 1 Driver, 4.75V to 5.25V, MSOP-8

Наличие: 442 шт.

Адрес доставки: Москва

Цена: ₽ 348.72

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC297900

Категория продукта:

Чип интерфейса

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

ADM1485ARMZ характеристики

Атрибут	Значение атрибута
Номенклатура	ADM1485ARMZ
Производитель	ADI
ЧипСити Номер продукта	CC297900
Категория продукта	Чип интерфейса
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	8 Pin
Корпус/Пакет	MSOP-8
Напряжение Питания (DC)	4.75V (min)
Ток Питания	2.2 mA
Количество Стежков	8 Position
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Напряжение питания	4.75V ~ 5.25V
Напряжение питания (Макс)	5.25 V
Напряжение питания (мин)	4.75 V
Длина	3 mm
Ширина	3 mm
Высота	0.95 mm
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Active
Упаковка	Tube
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

ADM1485ARMZ описание продукта

Product Details
The ADM1485 is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422. The part contains a differential line driver and a differential line receiver. Both the driver and the receiver may be enabled independently. When disabled, the outputs are tristated.
The ADM1485 operates from a single +5 V power supply. Excessive power dissipation caused by bus contention or by output shorting is prevented by a thermal shutdown circuit. This feature forces the driver output into a high impedance state if during fault conditions a significant temperature increase is detected in the internal driver circuitry.
Up to 32 transceivers may be connected simultaneously on a bus, but only one driver should be enabled at any time. It is important therefore that the remaining disabled drivers do not load the bus. To ensure this, the ADM1485 driver features high output impedance when disabled and also when powered down.
This minimizes the loading effect when the transceiver is not being utilized. The high impedance driver output is maintained over the entire common-mode voltage range from -7 V to +12 V.
The receiver contains a fail safe feature which results in a logic high output state if the inputs are unconnected (floating).
The ADM1485 is fabricated in BiCMOS, an advanced mixed technology process combining low power CMOS with fast switching bipolar technology. All inputs and outputs contain protection against ESD; all driver outputs feature high source and sink current capability. An epitaxial layer is used to guard against latch-up.
The ADM1485 features extremely fast switching speeds. Minimal driver propagation delays permit transmission at data rates up to 30 Mbits/s while low skew minimizes EMI interference.
The part is fully specified over the commercial and industrial temperature range and is available in an 8-pin DIL/SOIC package.
### Features and Benefits
Meets EIA RS-485 Standard
30 Mb/s Data Rate
Single +5 V Supply
–7 V to +12 V Bus Common-Mode Range
High Speed, Low Power BiCMOS
Thermal Shutdown Protection
Short Circuit Protection
Zero Skew Driver
Driver Propagation Delay: 10 ns
Receiver Propagation Delay: 25 ns
High Z Outputs with Power Off
Superior Upgrade for LTC1485
