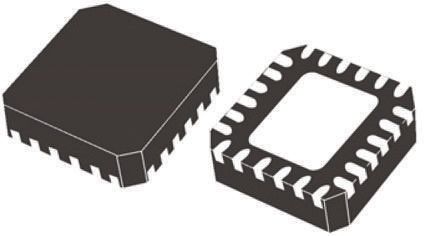

STM8L151G6U6

ST Microelectronics

MCU 8Bit STM8 CISC 32KB Flash 2.5V/3.3V 28Pin UFQFPN Tray

Наличие: 2,084 шт.

Адрес доставки: Москва

Цена: ₽ 116.80

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ST Microelectronics

ЧипСити Номер продукта:

CC2707200

Категория продукта:

Микроконтроллер

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

STM8L151G6U6 характеристики

Атрибут	Значение атрибута
Номенклатура	STM8L151G6U6
Производитель	ST Microelectronics
ЧипСити Номер продукта	CC2707200
Категория продукта	Микроконтроллер
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	28 Pin
Корпус/Пакет	UFQFPN-28
Частота	16 MHz
Количество Стежков	28 Position
Размер ОЗУ	2K x 8
Количество Битов	8 Bit
Размер Флэш-памяти	32 KB
Количество АЦП	1 ADC
Количество входов и выходов	26 Input IO
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Напряжение питания	1.8V ~ 3.6V
Напряжение питания (Макс)	3.6 V
Напряжение питания (мин)	1.65 V
Длина	4.1 mm
Ширина	4.1 mm
Высота	0.55 mm
Рабочая Температура	-40℃ ~ 85℃ (TA)
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

STM8L151G6U6 описание продукта

The medium-density STM8L151x4/6 and STM8L152x4/6 devices are members of the STM8L ultra-low-power 8-bit family. The medium-density STM8L15x family operates from 1.8 V to 3.6 V (down to 1.65 V at power down) and is available in the -40 to +85 °C and -40 to +125 °C temperature ranges.
The medium-density STM8L15x ultra-low-power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.
The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-Application debugging and ultra-fast Flash programming.
All medium-density STM8L15x microcontrollers feature embedded data EEPROM and low-power, low-voltage, single-supply program Flash memory.
They incorporate an extensive range of enhanced I/Os and peripherals.
The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.
Six different packages are proposed from 28 to 48 pins. Depending on the device chosen, different sets of peripherals are included.
All STM8L ultra-low-power products are based on the same architecture with the same memory mapping and a coherent pinout.
**Key Features**
Operating conditions
Operating power supply range 1.8 V to 3.6 V (down to 1.65 V at power down)
Temp. range: - 40 °C to 85, 105 or 125 °C
Low power features
5 low power modes: Wait, Low power run (5.1 μA), Low power wait (3 μA), Active-halt with full RTC (1.3 μA), Halt (350 nA)
Consumption: 195 μA/MHz + 440 μA
Ultra-low leakage per I/0: 50 nA
Fast wakeup from Halt: 4.7 μs
Advanced STM8 core
Harvard architecture and 3-stage pipeline
Max freq. 16 MHz, 16 CISC MIPS peak
Up to 40 external interrupt sources
Reset and supply management
Low power, ultra-safe BOR reset with 5 selectable thresholds
Ultra-low-power POR/PDR
Programmable voltage detector (PVD)
Clock management
1 to 16 MHz crystal oscillator
32 kHz crystal oscillator
Internal 16 MHz factory-trimmed RC
Internal 38 kHz low consumption RC
Clock security system
Low power RTC
BCD calendar with alarm interrupt
Auto-wakeup from Halt w/ periodic interrupt
LCD: up to 4x28 segments w/ step-up converter
Memories
Up to 32 KB of Flash program memory and 1 Kbyte of data EEPROM with ECC, RWW
Flexible write and read protection modes
Up to 2 Kbyte of RAM
DMA
4 channels; supported peripherals: ADC, DAC, SPI, I2C, USART, timers
1 channel for memory-to-memory
12-bit DAC with output buffer
12-bit ADC up to 1 Msps/25 channels
T. sensor and internal reference voltage
2 ultra-low-power comparators
1 with fixed threshold and 1 rail to rail
Wakeup capability
Timers
Two 16-bit timers with 2 channels (used as IC, OC, PWM), quadrature encoder
One 16-bit advanced control timer with 3 channels, supporting motor control
One 8-bit timer with 7-bit prescaler
2 watchdogs: 1 Window, 1 Independent
Beeper timer with 1, 2 or 4 kHz frequencies
Communication interfaces
Synchronous serial interface (SPI)
Fast I2C 400 kHz SMBus and PMBus
USART (ISO 7816 interface and IrDA)
Up to 41 I/Os, all mappable on interrupt vectors
Up to 16 capacitive sensing channels supporting touchkey, proximity, linear touch and rotary touch sensors
Development support
Fast on-chip programming and non intrusive debugging with SWIM
Bootloader using USART
96-bit unique ID

Показывать

STM8L151G6U6 Даташит PDF

142 страницы, 1810 КБ

04/21/2015
