LPC2146FBD64 Купить - NXP

Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

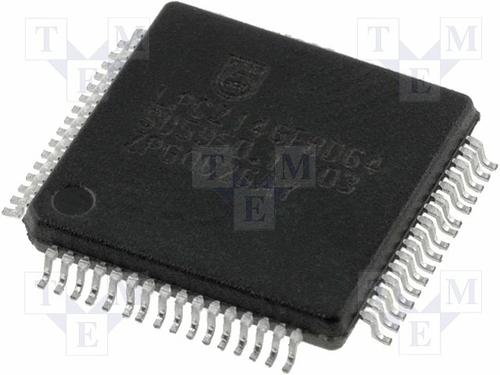

LPC2146FBD64

NXP

Single-chip 16Bit/32Bit microcontrollers; up to 512KB flash with ISP/IAP, USB 2.0 full-speed device, 10Bit ADC and D

Наличие: 362 шт.

Адрес доставки: Москва

Цена: ₽ 2,291.34

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

NXP

ЧипСити Номер продукта:

CC16651896

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

LPC2146FBD64 характеристики

Атрибут	Значение атрибута
Номенклатура	LPC2146FBD64
Производитель	NXP
ЧипСити Номер продукта	CC16651896
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	64 Pin
Корпус/Пакет	LQFP-64
Рабочее Напряжение	3V ~ 3.6V
Тактовая Частота	60 MHz
Размер ОЗУ	40960 B
Количество Битов	32 Bit
Размер Флэш-памяти	262144 B
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Unknown
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
	Показывать Просмотр аналоги замена

LPC2146FBD64 описание продукта

Overview
The LPC2141/42/44/46/48 microcontrollers are based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with embedded high-speed flash memory ranging from 32 kB to 512 kB. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.
Due to their tiny size and low power consumption, LPC2141/42/44/46/48 are ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. Serial communications interfaces ranging from a USB 2.0 Full-speed device, multiple UARTs, SPI, SSP to I²C-bus and on-chip SRAM of 8 kB up to 40 kB, make these devices very well suited for communication gateways and protocol converters, soft modems, voice recognition and low end imaging, providing both large buffer size and high processing power. Various 32-bit timers, single or dual 10-bit ADC(s), 10-bit DAC, PWM channels and 45 fast GPIO lines with up to nine edge or level sensitive external interrupt pins make these microcontrollers suitable for industrial control and medical systems.
MoreLess
## Features
**2.1 Key features**
* 16-bit/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package.
* 8 kB to 40 kB of on-chip static RAM and 32 kB to 512 kB of on-chip flash memory. 128-bit wide interface/accelerator enables high-speed 60 MHz operation.
* In-System Programming/In-Application Programming (ISP/IAP) via on-chip boot loader software. Single flash sector or full chip erase in 400 ms and programming of 256 B in 1 ms.
* EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high-speed tracing of instruction execution.
* USB 2.0 Full-speed compliant device controller with 2 kB of endpoint RAM. In addition, the LPC2146/48 provides 8 kB of on-chip RAM accessible to USB by DMA.
* One or two (LPC2141/42 vs. LPC2144/46/48) 10-bit ADCs provide a total of 6/14 analog inputs, with conversion times as low as 2.44 µs per channel.
* Single 10-bit DAC provides variable analog output (LPC2142/44/46/48 only).
* Two 32-bit timers/external event counters (with four capture and four compare channels each), PWM unit (six outputs) and watchdog.
* Low power Real-Time Clock (RTC) with independent power and 32 kHz clock input.
* Multiple serial interfaces including two UARTs (16C550), two Fast I²C-bus (400 kbit/s), SPI and SSP with buffering and variable data length capabilities.
* Vectored Interrupt Controller (VIC) with configurable priorities and vector addresses.
* Up to 45 of 5 V tolerant fast general purpose I/O pins in a tiny LQFP64 package.
* Up to 21 external interrupt pins available.
* 60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of 100 µs.
* On-chip integrated oscillator operates with an external crystal from 1 MHz to 25 MHz.
* Power saving modes include Idle and Power-down.
* Individual enable/disable of peripheral functions as well as peripheral clock scaling for additional power optimization.
* Processor wake-up from Power-down mode via external interrupt or BOD.
* Single power supply chip with POR and BOD circuits:
* CPU operating voltage range of 3.0 V to 3.6 V (3.3 V ± 10 %) with 5 V tolerant I/O pads.
## Features

Показывать

LPC2146FBD64 Даташит PDF

45 страницы, 392 КБ
