STM8S207RBT6C Купить - ST Microelectronics Микроконтроллер

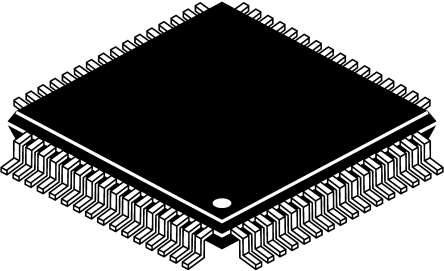

Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

STM8S207RBT6C

ST Microelectronics

MCU 8Bit STM8 CISC 128KB Flash 3.3V/5V 64Pin LQFP Tray

Наличие: 963 шт.

Адрес доставки: Москва

Цена: ₽ 343.35

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ST Microelectronics

ЧипСити Номер продукта:

CC9969211

Категория продукта:

Микроконтроллер

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

STM8S207RBT6C характеристики

Атрибут	Значение атрибута
Номенклатура	STM8S207RBT6C
Производитель	ST Microelectronics
ЧипСити Номер продукта	CC9969211
Категория продукта	Микроконтроллер
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	64 Pin
Корпус/Пакет	LQFP-64
Частота	24 MHz
Напряжение Питания (DC)	2.95V (min)
Количество Стежков	64 Position
Тактовая Частота	24.0 MHz
Размер ОЗУ	6 KB
Рассеяние Мощности	443 mW
Количество АЦП	1 ADC
Количество входов и выходов	52 Input IO
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	443 mW
Напряжение питания (Макс)	5.5 V
Напряжение питания (мин)	2.95 V
Длина	12 mm
Ширина	12 mm
Высота	1.6 mm
Рабочая Температура	-40℃ ~ 85℃ (TA)
Жизненный Цикл Продукта	Active
Упаковка	Tray
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
REACH SVHC Комплаенс	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

STM8S207RBT6C описание продукта

The STM8S20xxx performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash program memory. They are referred to as high-density devices in the STM8S microcontroller family reference manual.
All STM8S20xxx devices provide the following benefits: reduced system cost, performance robustness, short development cycles, and product longevity.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.
Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs (with a separate clock source), and a clock security system.
Short development cycles are guaranteed due to application scalability across a common family product architecture with compatible pinout, memory map and modular peripherals. Full documentation is offered with a wide choice of development tools.
Product longevity is ensured in the STM8S family thanks to their advanced core which is made in a state-of-the art technology for applications with 2.95 V to 5.5 V operating supply.
**Key Features**
Core
Max fCPU : up to 24 MHz, 0 wait states @ fCPU ≤ 16 MHz
Advanced STM8 core with Harvard architecture and 3-stage pipeline
Extended instruction set
Max 20 MIPS @ 24 MHz
Memories
Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles
Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles
RAM: up to 6 Kbytes
Clock, reset and supply management
2.95 to 5.5 V operating voltage
Low power crystal resonator oscillator
External clock input
Internal, user-trimmable 16 MHz RC
Internal low power 128 kHz RC
Clock security system with clock monitor
Wait, active-halt, & halt low power modes
Peripheral clocks switched off individually
Permanently active, low consumption power-on and power-down reset
Interrupt management
Nested interrupt controller with 32 interrupts
Up to 37 external interrupts on 6 vectors
Timers
2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM)
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
8-bit basic timer with 8-bit prescaler
Auto wakeup timer
Window watchdog, independent watchdog
Communications interfaces
High speed 1 Mbit/s active beCAN 2.0B
UART with clock output for synchronous operation - LIN master mode
UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization
SPI interface up to 10 Mbit/s
I2 C interface up to 400 Kbit/s
10-bit ADC with up to 16 channels
I/Os
Up to 68 I/Os on an 80-pin package including 18 high sink outputs
Highly robust I/O design, immune against current injection
Development support
Single wire interface module (SWIM) and debug module (DM)
96-bit unique ID key for each device

Показывать

STM8S207RBT6C Даташит PDF

117 страницы, 1535 КБ

02/18/2015
