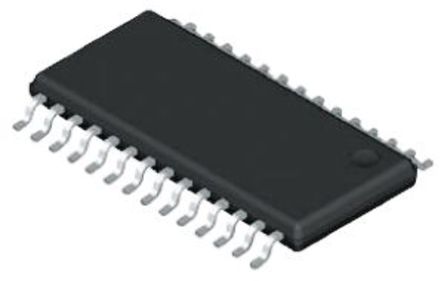

Картинки только для справки.Точные характеристики следует получить из паспорта продукта.

AD9764ARUZ

ADI

ANALOG DEVICES AD9764ARUZ Digital to Analog Converter, 14Bit, 125MSPS, 2.7V to 5.5V, TSSOP, 28Pins

Наличие: 291 шт.

Адрес доставки:

Цена: ₽ 476.61

шт.

Купить

*Запросить предложение по оптовому количеству?

*Акции меняются очень быстро Контакты немедленно!

Производитель:

ADI

ЧипСити Номер продукта:

CC404563

Категория продукта:

Преобразователь DA

3D модель

Оплата:

Обновлено 17.06.2025, 07:48:07(GMT+3)

Проверка качества компонентов

тдел качества компонентов ЧипСити поддерживает вышеупомянутые многочисленные методы проверки, чтобы гарантировать качество компонентов. Узнать больше >

AD9764ARUZ характеристики

Атрибут	Значение атрибута
Номенклатура	AD9764ARUZ
Производитель	ADI
ЧипСити Номер продукта	CC404563
Категория продукта	Преобразователь DA
Даташит
3D модель	3D модель
Стиль Монтажа	Surface Mount
Количество Выводов	28 Pin
Корпус/Пакет	TSSOP-28
Количество Выходных Интерфейсов	1 Output
Ток Питания	25.0 mA
Количество Каналов	1 Channel
Количество Стежков	28 Position
Количество Битов	14 Bit
Рассеяние Мощности	170 mW
Частота Выборки	125 Msps
Разрешение (биты)	14.0 Bit
Рабочая температура (Макс)	85 ℃
Рабочая температура (мин)	-40 ℃
Рассеиваемая Мощность (Макс)	170 mW
Количество ЦАПов	1 DAC
Напряжение питания	2.7V ~ 5.5V
Напряжение питания (Макс)	5.5 V
Напряжение питания (мин)	2.7 V
Длина	9.8 mm
Ширина	6.5 mm
Высота	1.1 mm
Рабочая Температура	-40℃ ~ 85℃
Жизненный Цикл Продукта	Active
Упаковка	Tube
RoHS Комплаенс	RoHS Compliant
Бессвинцовая Статус	Lead Free
Военный Класс	No
REACH SVHC Compliance Edition	2015/12/17
ECCN кодекс	EAR99
	Показывать Просмотр аналоги замена

AD9764ARUZ описание продукта

Product Details
The AD9764 is the 14-bit resolution member of the TxDAC® series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC®; family, which consists of pin compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package and pinout, providing an upward or downward component selection path based on performance, resolution and cost. The AD9764 offers exceptional ac and dc performance while supporting update rates up to 125 MSPS.
The AD9764’s flexible single-supply operating range of 2.7 V to 5.5 V and low power dissipation are well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 45 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 25 mW.
The AD9764 is manufactured on an advanced CMOS process. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance. Edge-triggered input latches and a 1.2 V temperature compensated bandgap reference have been integrated to provide a complete monolithic DAC solution. Flexible supply options support +3 V and +5 V CMOS logic families.
The AD9764 is a current-output DAC with a nominal full-scale output current of 20 mA and >100 kΩ output impedance. Differential current outputs are provided to support single-ended or differential applications. Matching between the two current outputs ensures enhanced dynamic performance in a differential output configuration. The current outputs may be tied directly to an output resistor to provide two complementary, single-ended voltage outputs or fed directly into a transformer. The output voltage compliance range is 1.25 V.
The on-chip reference and control amplifier are configured for maximum accuracy and flexibility. The AD9764 can be driven by the on-chip reference or by a variety of external reference voltages. The internal control amplifier, which provides a wide (>10:1) adjustment span, allows the AD9764 full-scale current to be adjusted over a 2 mA to 20 mA range while maintaining excellent dynamic performance. Thus, the AD9764 may operate at reduced power levels or be adjusted over a 20 dB range to provide additional gain ranging capabilities.
The AD9764 is available in a 28-lead SOIC package. It is specified for operation over the industrial temperature range.
Product Highlights
1. The AD9764 is a member of the TxDAC product family that provides an upward or downward component selection path based on resolution (8 to 14 bits), performance and cost.
2. Manufactured on a CMOS process, the AD9764 uses a proprietary switching technique that enhances dynamic performance beyond that previously attainable by higher power/cost bipolar or BiCMOS devices.
3. On-chip, edge-triggered input CMOS latches readily interface to +3 V and +5 V CMOS logic families. The AD9764 can support update rates up to 125 MSPS.
4. A flexible single-supply operating range of 2.7 V to 5.5 V, and a wide full-scale current adjustment span of 2 mA to 20 mA, allows the AD9764 to operate at reduced power levels.
5. The current output(s) of the AD9764 can be easily configured for various single-ended or differential circuit topologies.
Applications
Communication Transmit Channel:
\- Basestations
\- ADSL/HFC Modems
Instrumentation
### Features and Benefits
Member of pin-compatible TxDAC product family
125 MSPS update rate
14-bit resolution
Excellent SFDR and IMD
Differential current outputs: 2 mA to 20 mA
Power dissipation: 190 mW at 5 V to 45 mW at 3 V
Power-down mode: 25 mW at 5 V
On-chip 1.20 V reference
Single +5 V or +3 V supply operation
Packages: 28-lead SOIC and TSSOP
Edge-triggered latches

Показывать

AD9764ARUZ Даташит PDF

22 страницы, 309 КБ

10/08/1999
